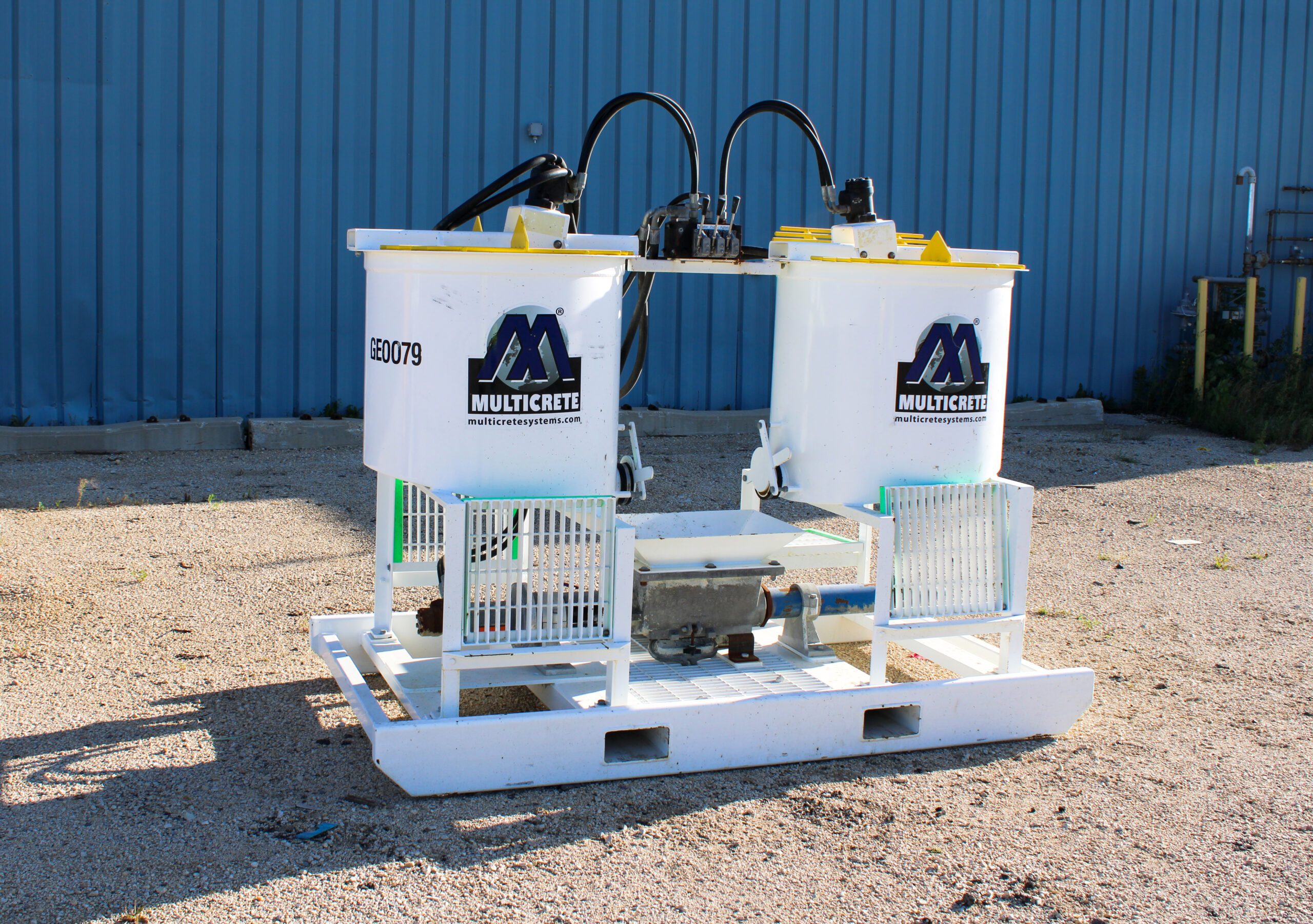

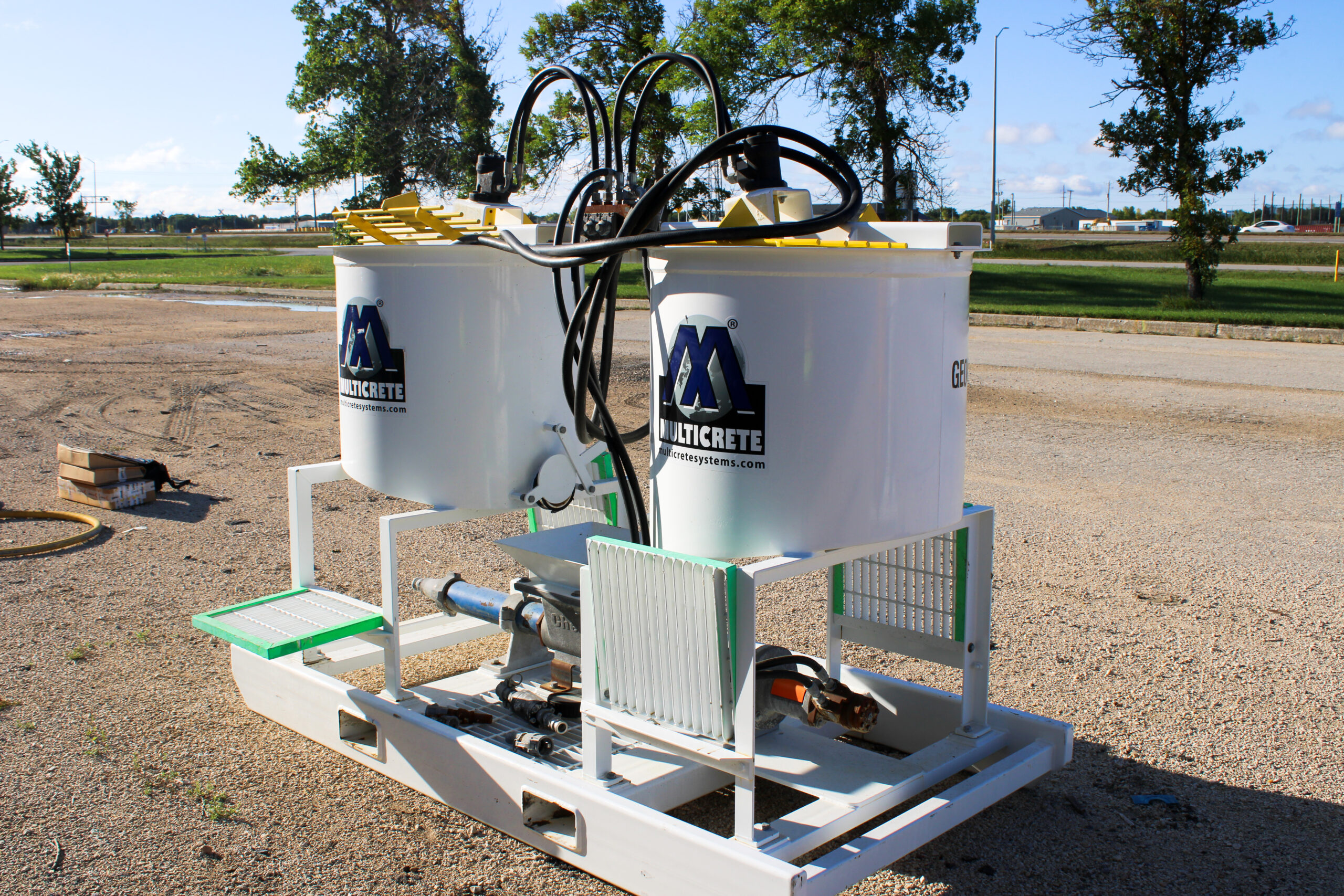

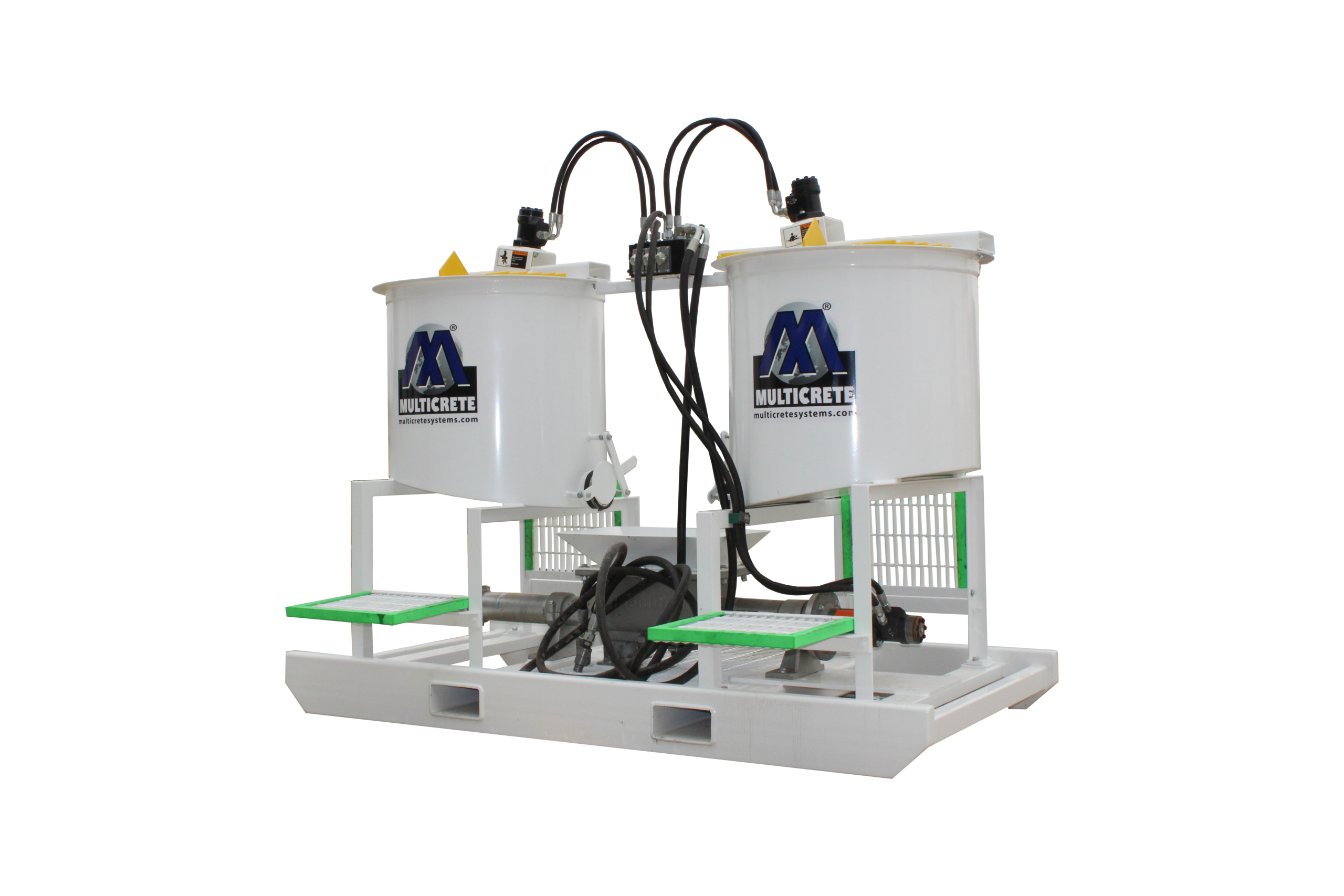

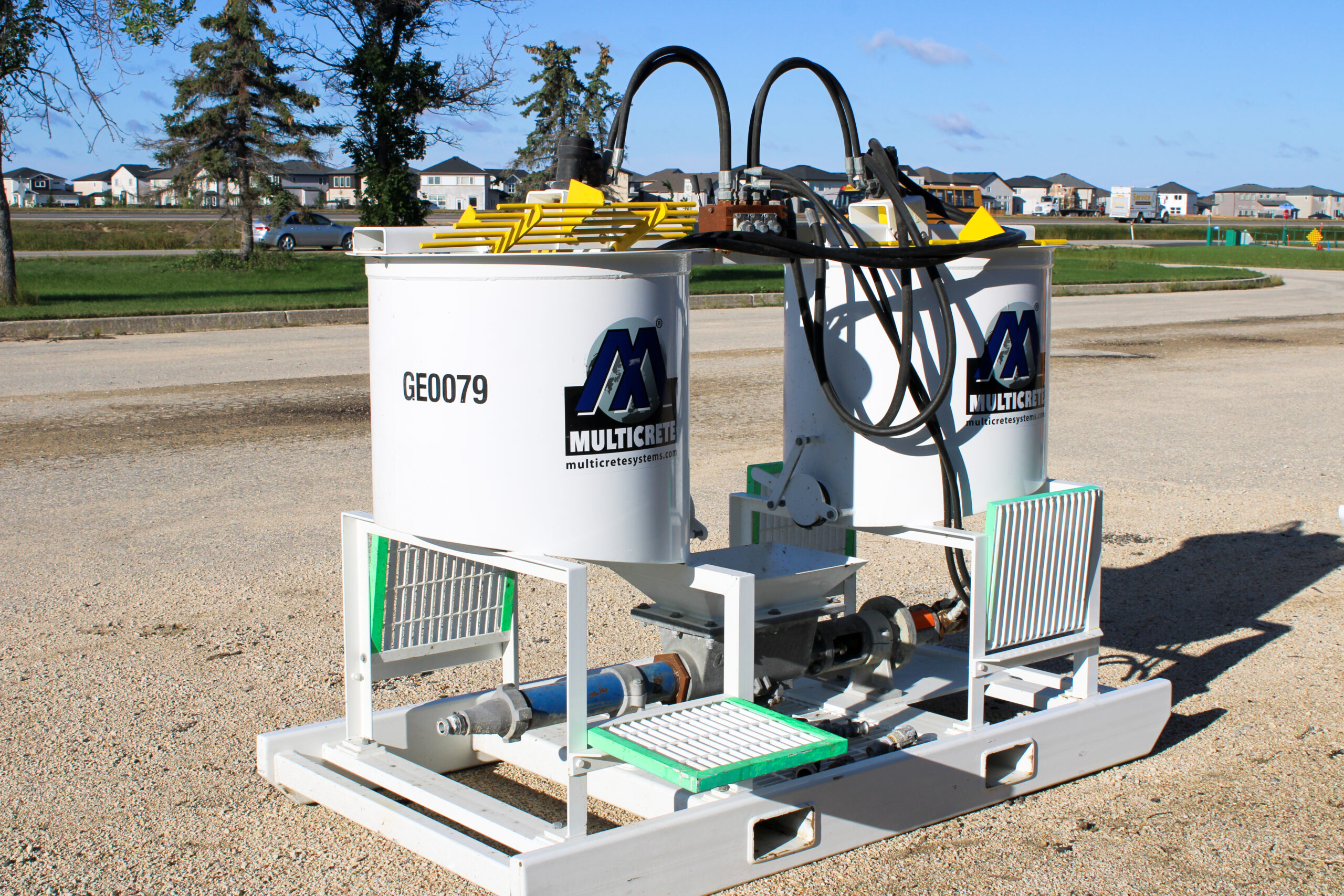

Multicrete Cobra Grout Plant

The Multicrete Cobra Grout Plant is a paddle mix, modular, skid mounted mixer, engineered to be disassembled quickly for cleaning and repairs when necessary.

This unit features two twin 83-gallon (314 litres) capacity mixing tanks, and a 15 gallon (57 litres) holding hopper using a progressive cavity pump. A piston pump can also be equipped to this unit.

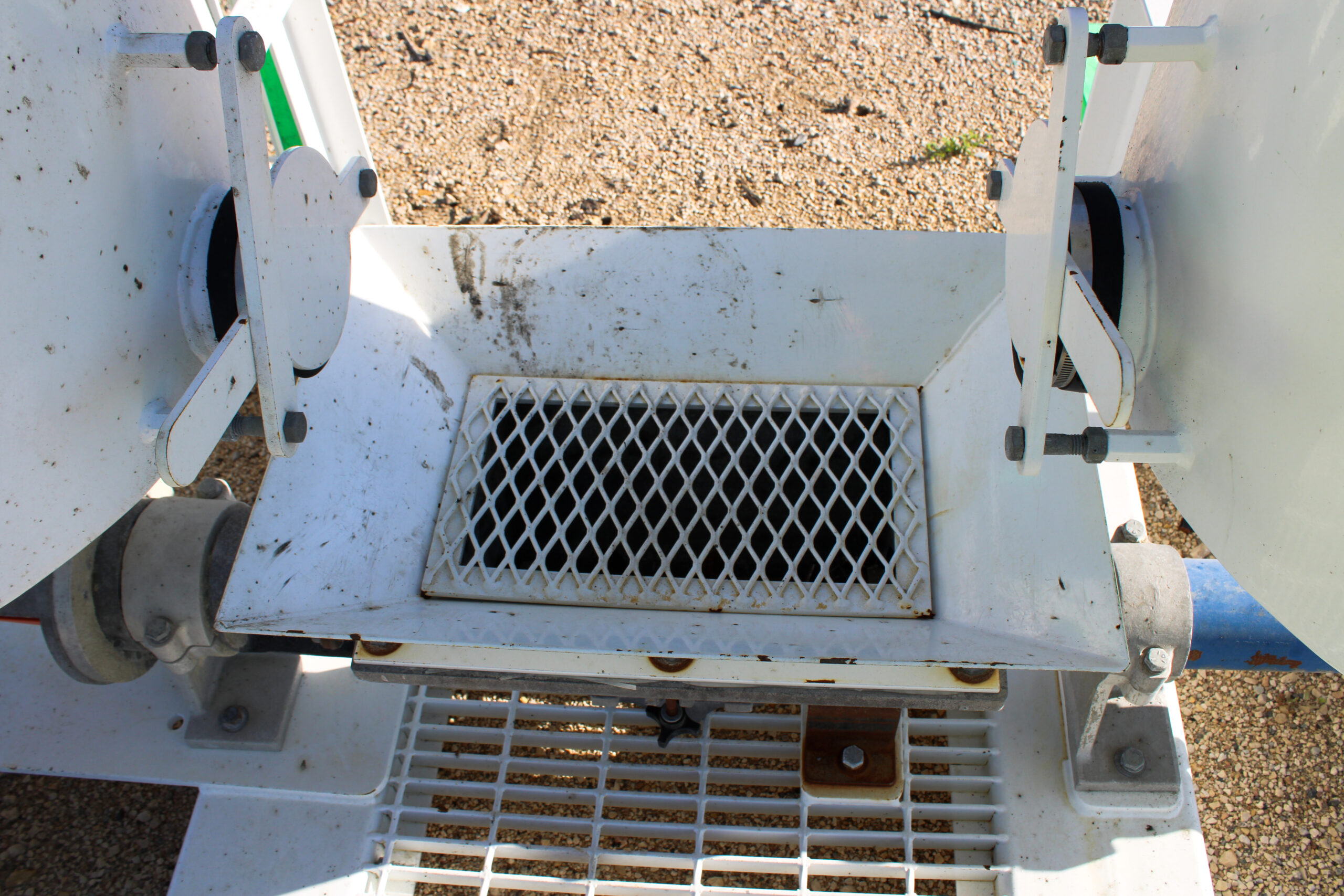

Each mixer tank has four bag breakers affixed for ease of use from either side of the grout mixer. With its ergonomic design, the Multicrete Cobra Grout Plant provides various safety features and a comfortable workspace when breaking bags of grout into the hopper. The tough skid design can handle all workplace conditions found on job sites and features a large skid (4 x 8”) fork slots offering mobility when relocating the unit.

Add to quote

Features

  • Twin 83 gallon (314 liter) capacity mixing tanks
    • 15 gallon (57 liter) holding hopper
    • Progressive cavity pump
    • Optional piston pump (for sanded grout)
    • Low shear
    • Modular skid design
    • Quick disassembly for cleaning
    • Four bag breakers two on each tank
    • Work platform has four individual steps for ease of use
    • 4” x 8” fork tubes
    • Each mixing paddle has rubber scrapers to eliminate buildup



Specifications

Power Options:

  • • Air Power – 250 CFM Required
    • Electric power with a Variable Frequency Drive
    – 575v, 480v or 360v three phase
    • Gas/Diesel powered with hydraulic component



Pump Options:

  • • 1-26 GPM volume output
    • 176 to 330 psi output pressure

Multicrete Cobra Grout Plant TDS: Cobra Grout Plant TDS 2025
