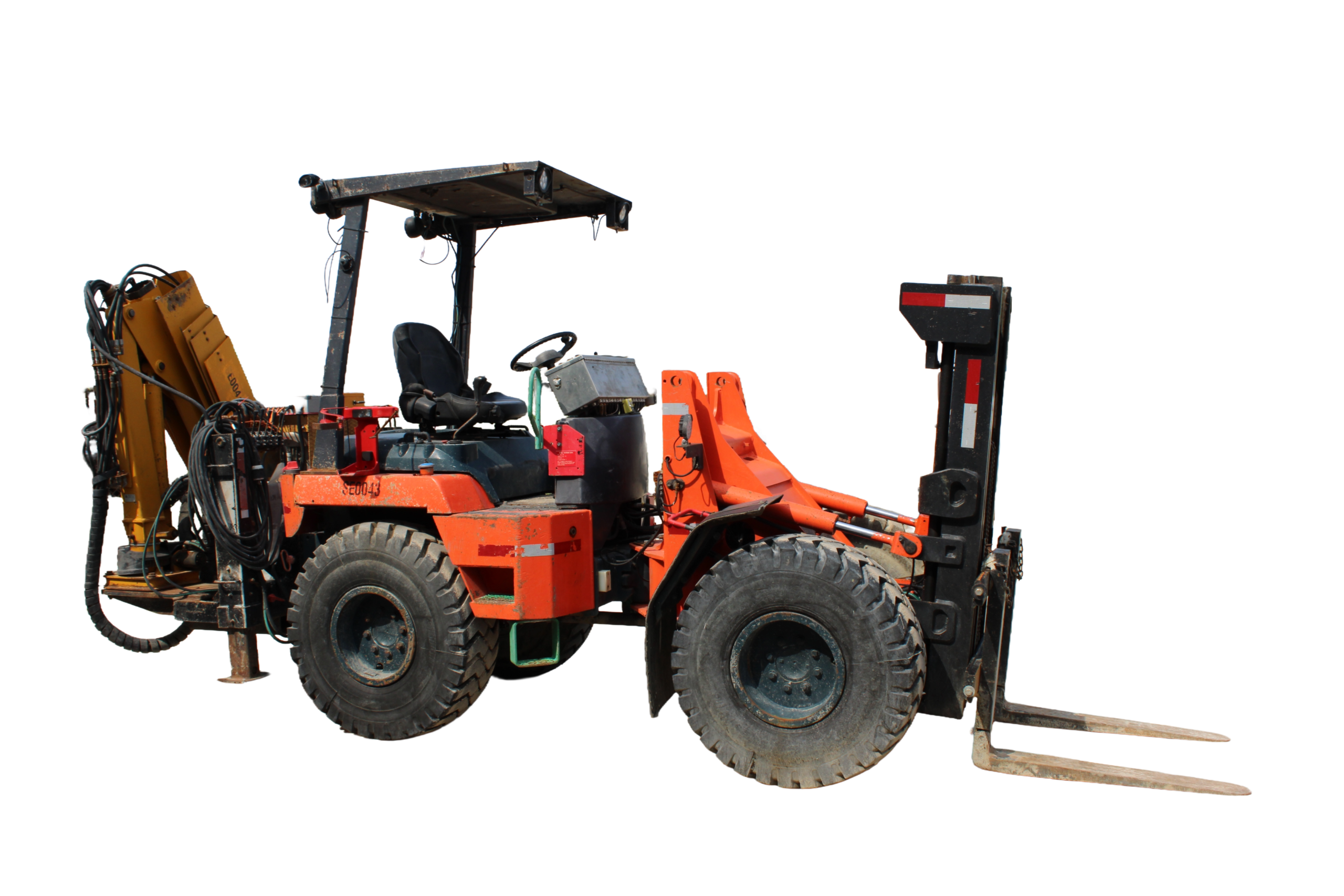

The Multicrete MSU 520/302 is a fully complete mobile shotcrete unit, with front forklifts and a shotcrete boom capable of reaching up to 23 feet. MSU 520/302 provides a compact design, high tensile strength, designed for low weight and maximum lift.
CARRIER
KUBOTA, R520S V2203-M-E3
TYPE Liquid Cooled, 4-Cylinder Diesel
TRANSMISSION 1-F, 1-R Load Sensing
HORSEPOWER 46.0 @ 2,600 RPM
OPERATING WEIGHT 8,980 lbs (4,082 kg)
DISPLACEMENT 134.1 cu. In. (2,095 cc)
TURBO CHARGER No
E-TVCS Yes – Low Emissions
OVERALL WIDTH 69.3” (173.25 cm)
WHEELBASE 76.8” (192 cm)
GROUND CLEARANCE 12.8” (32 cm)
TREAD 53.5” (133.75 cm)
ANGLE OF ARTICULATION 40
FRAME OSCILLATION 8
BRAKES/SERVICE Encl. Self adjust wet disc
PARKING Spring apply, hydr. wet disc
FORKLIFT
MAXIMUM LIFT 10’
FORKS (FOLDING) 2-1/2’ X 5’40”
CAPACITY 5500 lbs.
TC SERIES COMPACT TELESCOPIC MONO-BOOM CRANES
MODEL TC 350.3
MAXIMUM LIFT 5,296 lbs.
LIFT MOMENT (FT. lbs.) 24,900
MINIMUM REACH 5’3”
MAXIMUM REACH 23’
BASE CRANE WEIGHT 650-860
SHOTCRETE BOOM
MAXIMUM REACH 23”
MINIMUM REACH 5’3”
MAXIMUM LENGTH 19.5”
ANGLE OF ROTATION 110
SPRAYING ANGLE 240
REMOTE CONTROL HYDRAULIC
HYDRAULIC AGGREGATE 14 L/min
ELECTRIC DRIVE 5.5 kW
ON AIR DRIVE 7 kW
