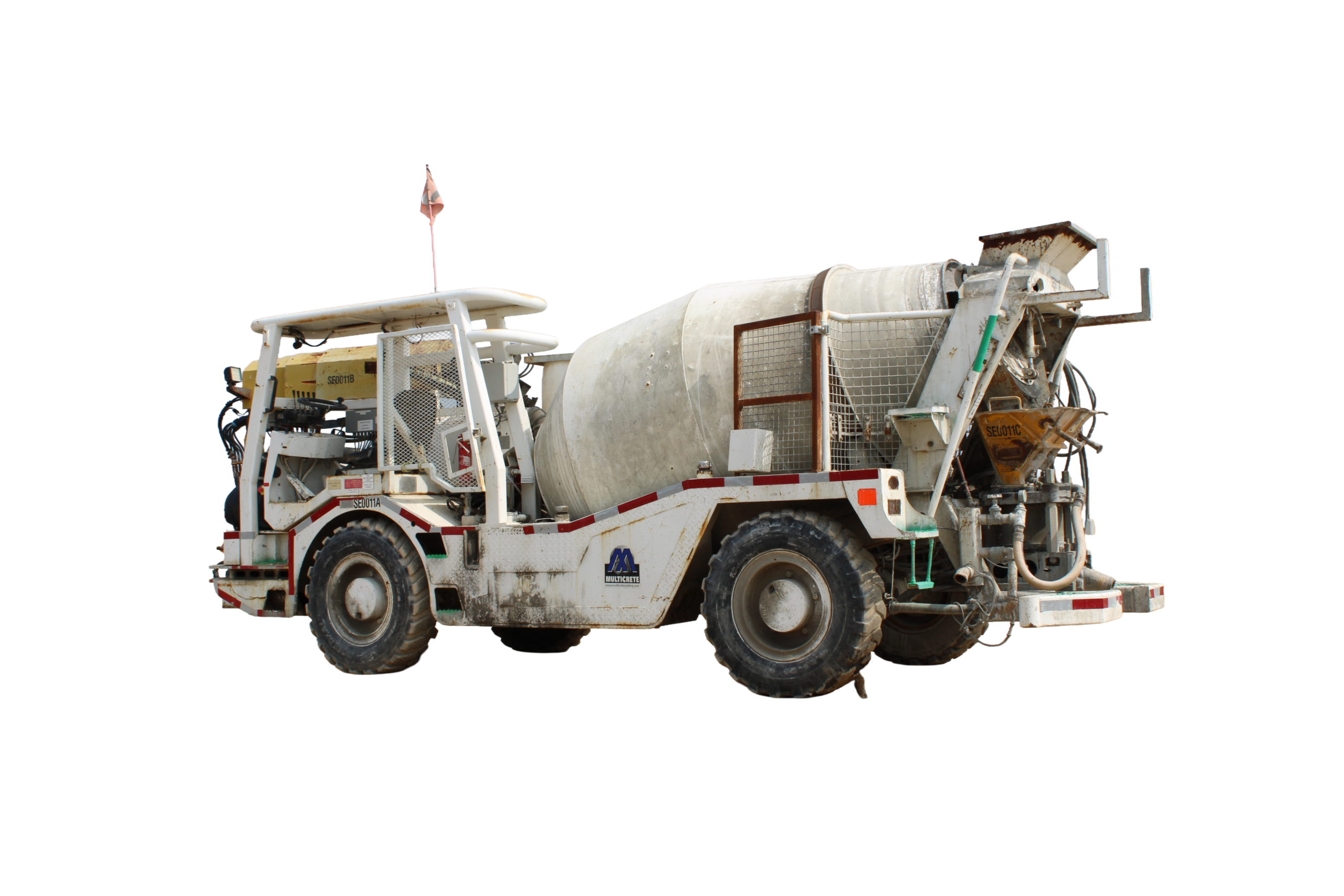

The Huron 4 is a 4m³ drum mixer truck, used for wet mix shotcrete application. This unit is comprised of a shotcrete pot, AL-302 spray arm and pumping system and are all connected on a single chassis.
Huron 4 Specifications
TRANSMIXER TRUCK:
Chassis: Monoblock. Heavy duty type.
Engine: Diesel CUMMINGS type QSB 4.5 (TIER lll-COM lll),4 cylinders, turbo intercooler. Liquid cooling. Power DIN 116kW (155HP) to 2,200 r.p.m. It is designed to work at 4700 MASL.
Axles: Monolithic with epicycloids reducer. Dynamic loading capacity per axle 8000 kg. Steering type front axle with oscillating assembly. Fixed rear axle.
Transmission: Hydrostatic type with automatic regulation. Axial pistons pump of variable flow applied directly to diesel engine. Hydraulic motor at axial pistons mounted on reducer cap
Steering: Hydraulic on front axle.
Brakes: Internal discs oil bathed on front wheels. Hydraulic activate in two independent circuits. Parking brakes on transmission with hand lever control.
Drum
| Concrete output capacity | 4m3 |
| Direct unloading height | 1,465 mm |
| Unloading height | 1,100 mm |
Hydraulic rotation of drum for loading-mixing and unloading is effect by electric speed regulation of rpm.
Water System: Hydraulic operated self-priming water pump. The water is supplied from an external source, taken directly to the drum, to the tank or the washing hose. It can also be taken from the truck mixer tank to the drum or the washing hose. High pressure pump for cleaning purposes. Litre counter.
Max Slope
| Fully Loaded | 30% (SAE normative) |
Speed
| 1st | 0-8 km/hr (for working) |
| 2nd | 0-20 km/hr (for movement) |
Steering Radius
| Internal | 4,150 mm |
| External | 7,800 mm |
Electrical: 12 V battery 180 Ah, 650 A
Tires: 10’00R20 16PR
