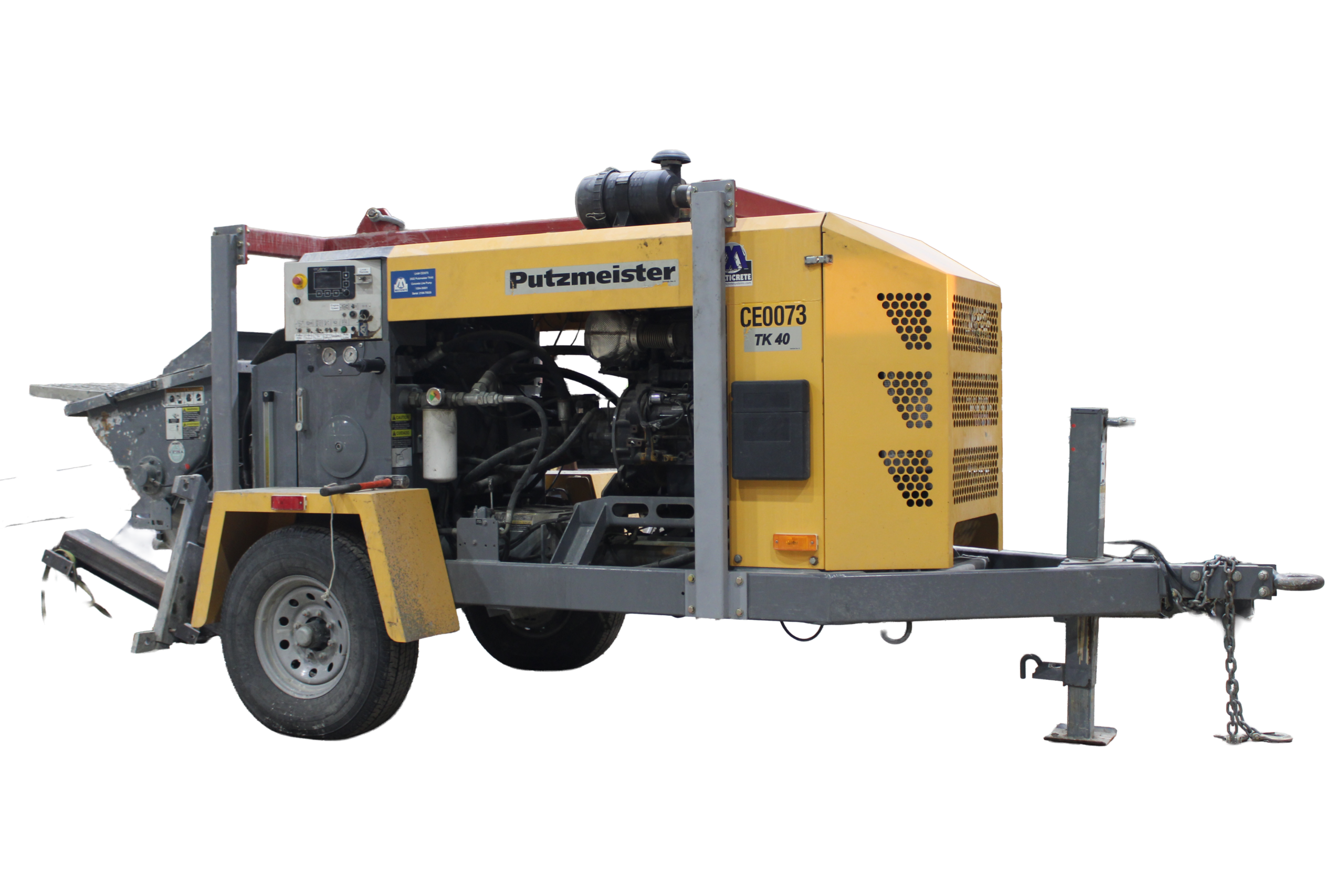

The Putzmeister TK40 Concrete pump is a hydraulically operated and electrically controlled concrete pump designed to pump wet concrete through a delivery system of pipes and hoses. With its rugged construction, and durable design, the Putzmeister unit can pump the harshest mixes within its published ratings and specifications.
TK40 Specifications
Performance
Maximum Concrete Output – 40 yd³/hr
Maximum Concrete Pressure – 1,150 psi
Maximum Aggregate Size – 1.50″
Pump & Hydraulic
Material Cylinders – 6″ x 39″
Max Strokes Per Minute – 31-32
Variable Volume Control – 0 to full
S-Valve – 6″ x 5″
Number of Cylinders – 2
Hydraulic Tank Capacity – 38-46 gallons
Hopper & Outlet
Hopper Capacity – 9.5ft³
Hopper Height – 49″
Outlet Diameter – 5″ HD
Dimensions & Weight
Length – 191″
Width – 70-74.5″
Height – 71-78″
Approximate Weight – 5,600 lbs.
